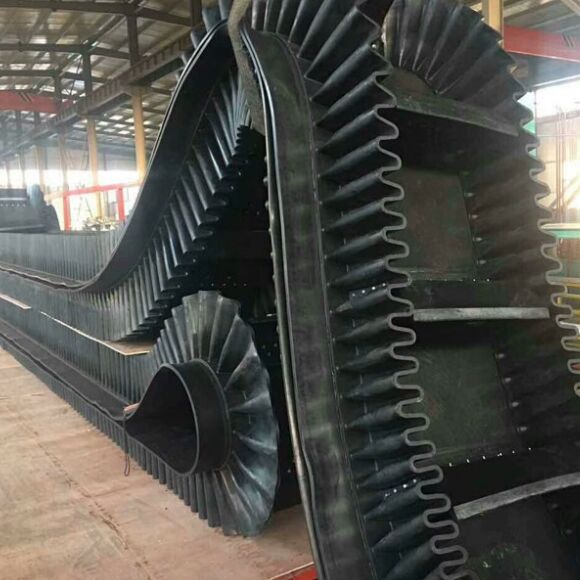

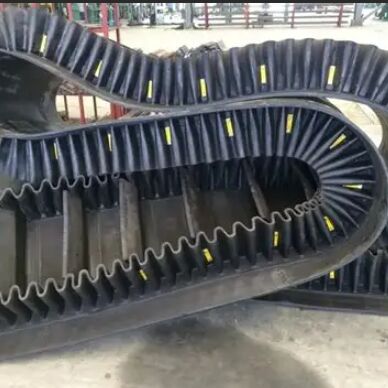

Small Lumps Partition Cold Resistant Conveyor Belt For Building Materials

1. Baseband requirements
The base belt of the partition conveyor belt must possess a certain level of tensile strength and wear resistance. For partition conveyor belts with open edges, in order to meet the requirements of large-inclination conveying, the belt must exhibit longitudinal flexibility while maintaining a certain degree of transverse rigidity.

2. Baseband structure
The base tape is composed of four parts: upper cover rubber, lower cover rubber, belt core and lateral rigid layer. The thickness of the upper cover rubber is generally 3-6mm; the thickness of the lower cover rubber is generally 1.5-4.5mm. The core material bears the tensile force. The material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or Wire rope ST). In order to increase the horizontal rigidity of the base belt, special reinforcing layers are added on and under the core, which are called horizontal rigid layers. The width of the base tape is the same as that of ordinary tape.

3. Features
1) Enables a significantly increased conveying angle, ranging from 30 degrees to 90 degrees;
2) Occupies a small floor area and features low overall investment costs;
3) Delivers a large conveying volume and achieves a higher lifting height for materials;
4) Achieves a seamless transition from horizontal to inclined (or vertical) conveying;
5) Suitable for conveying powdery, granular, small lumps, paste and liquid materials that are easy to scatter;
6) Boasts low energy consumption, a simple structural design, high belt strength and a long service life.

4. use
It is widely used in material transportation in ports, metallurgy, mining, electric power, coal, foundry, building materials, grain, chemical industry and other fields.

5. specifications
(1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), steel wire rope (ST), etc.
(2) Bandwidth: 100mm-2000mm
(3) Fabric layer: 2-20 layers
(4) Cover rubber: working surface: 1.5-15mm non-working surface: 0mm-6mm

6. variety
According to the performance of the covering rubber, it can be divided into ordinary type, heat-resistant type, cold-resistant type, acid and alkali-resistant type, oil-resistant type, etc.

7. implementation standards
Comply with GB7984-2001 standard

<
